型號(hào)： BK4014B

品牌： B&K

類別： 集成電路

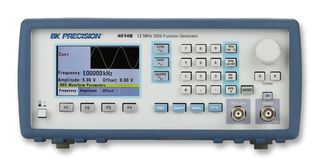

描述： Model 4014B is a 12 MHz DDS (direct digital synthesis) function generator that generates stable and precise sine, square, and triangle waveforms. It provides variable output voltages from 0 to 10 Vpp into 50R (up to 20 Vpp into open circuit), linear and logarithmic sweep, AM/FM modulation, built-in counter, and a continuously variable DC offset that allows the output to be injected directly into circuits at the correct bias level. Separate output amplitude and DC offset amplifiers let you set a large DC offset (e.g. ± 4.99 V ) with a small amplitude output signal (e.g. 10 mV), a feature typically found in more expensive generators. . Triangle/ramp waveforms up to 1 MHz . Bright colour display with waveform preview . Linear and logarithmic sweep . AM/FM modulation . Independent output and DC offset amplifiers allow for small amplitude output signals . Low-jitter square wave generation . Adjustable duty cycle . Output ON/OFF button . Internal/external triggering . Built-in counter . USB interface . SCPI-compliant command set . Short circuit and overvoltage protection on all inputs and outputs . 3 Year manufacturer warranty

品牌官網(wǎng)： www.bkprecision.com
