OD9225-SPOT
型號: OD9225-SPOT
類別: 集成電路

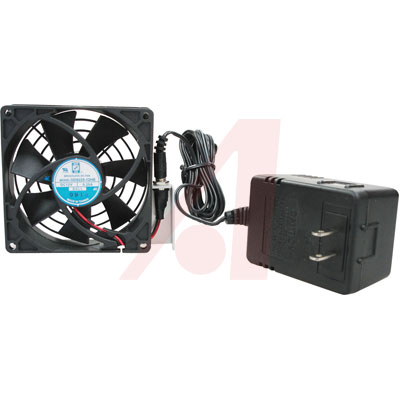

描述: Provides cooling solutions for “hot spots” within enclosed spaces. OD1232-SPOT is a brushless DC fan with auto restart and is polarity protected. Add to any existing cabinet to increase airflow to specific areas. This fan will operate at low to medium speed and will increase speed as more cooling is necessary in the application. Made from PBT, UL94V-O plastic. 60,000 L10 life expectancy. * Voltage Input: 120 VAC/60 Hz (with Provided Adapter) * Input Power: 19 W * DC Nominal Current: 0.25 A * DC Locked Current: 0.31 A * Rated Speed (RPM): 3100 Max. (40°C) * Airflow (CFM)/Temp: 50/34°C Max. * Noise Level (dB): 35 Max. * Max. Static Pressure: 0.24" H2O * Bearing System: Dual Ball Bearing * Frame & Impeller: PBT, UL94V-O Plastic * Motor: Brushless DC, Auto Re-Start, Impedance, Polarity Protected. Thermal Control * Insulation Resistance: 10 Mohm Between Leadwire and Frame (500 VDC) * Dielectric Strength: 500 VAC/Sec Max Leakage 500 μA * Operation Temperature: –20°C to +65°C * Life (L10): 60,000 Hours Tools and Parts Required (Not Supplied with This Unit): * (4×) 8-32 × 1?2" Screws * (4×) 8-32 Nut * (1) G92-16 (or Equivalent) 92 mm Finger Guard
品牌官網:
- 賣盤信息
- 常見問題
- 參數
-
平臺購物流程是怎樣的?
平臺商品來源有保障嗎?
平臺上展示的商品數量、價格及相關信息準確嗎?
平臺支持BOM詢價嗎?
平臺下單后什么時候能發貨?多久能到?
拍明芯城的訂單如何跟蹤?
拍明芯城的訂單可以提供合同嗎?
拍明芯城的發票如何開具?
參數 | 數值 |
---|---|
Air Flow
|
50CFM
|
Bearing Type
|
2 Ball
|
Brand/Series
|
OD9225 Series
|
Configuration
|
Square
|
Current Rating
|
0.25 A
|
Dimensions
|
3.6 x 3.6 x 1 (92 x 92 x 25)In. (mm)
|
Direction
|
Exhaust over Struts
|
Fan Type
|
AC
|
Frequency
|
60 Hz
|
Material
|
Plastic
|
Noise Level
|
35dBA
|
Power Rating
|
19W
|
Primary Type
|
Fans
|
Rotation
|
CCW
|
Size
|
3.6 x 1 (92 x 25) In. (mm)
|
Size
|
Fan,3.6 x 1 (92 x 25) In. (mm)
|
Speed
|
3100RPM
|
Static Pressure
|
0.24In. (H2O)
|
Temperature
|
Operating, Maximum,65 °C
|
Temperature
|
Operating, Minimum,-20 °C
|
Termination
|
Leadwires
|
Type
|
Square
|
Voltage Rating
|
120VAC
|
