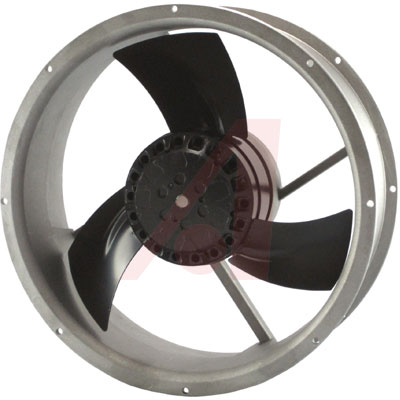

OA2543AN-11-1WB1856
加入對比型號： OA2543AN-11-1WB1856
品牌： KNIGHT ELECTRONICS
類別： 集成電路
描述： Orion"s all metal fans are ideal for military, chemical, process control and industrial applications. Since plastic fan blades can be susceptible to severe conditions such as high temperatures or chemical gases, metal fan blades are preferred in harsh environment applications for their durability. For harsh environment involving dust, moisture and other contaminants which may come in direct contact with fans, the IP55-rated sealing ensures safe, reliable operation and an extended operating life of the device.
品牌官網：
- 賣盤信息
- 參數
- 常見問題
| 參數 | 數值 |
|---|---|
|
Air Flow
|
800/930CFM
|
|
Bearing Type
|
2 Ball
|
|
Brand/Series
|
OA2543AN Series
|
|
Configuration
|
Round
|
|
Dimensions
|
10 x 3.5 (254 x 89)In. (mm)
|
|
Direction
|
Exhaust over Struts
|
|
Fan Type
|
AC
|
|
Frequency
|
50/60 Hz
|
|
Material
|
Diecast Aluminum
|
|
Noise Level
|
66dBA
|
|
Power Rating
|
95/105W
|
|
Primary Type
|
Fans
|
|
Rotation
|
CCW
|
|
Size
|
10 x 3.5 (254 x 89) In. (mm)
|
|
Size
|
Fan,10 x 3.5 (254 x 89) In. (mm)
|
|
Speed
|
2800/3300RPM
|
|
Static Pressure
|
0.84/0.78In. (H2O)
|
|
Temperature Range
|
-30 to 80 °C
|
|
Temperature
|
Operating, Maximum,80 °C
|
|
Temperature
|
Operating, Minimum,-30 °C
|
|
Termination
|
Leadwires
|
|
Type
|
Round
|
|
Voltage Rating
|
115VAC
|
|
Weight
|
2100 g
|
