OA2547AN-11-1WB1856
加入對比型號： OA2547AN-11-1WB1856
類別： 集成電路

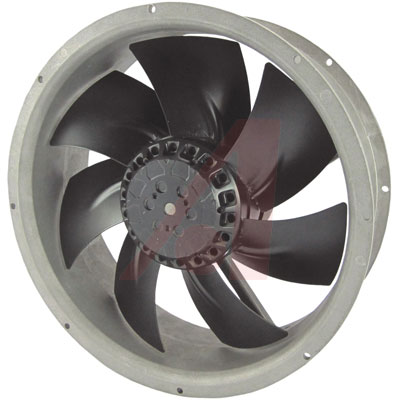

描述： Orion"s all metal fans are ideal for military, chemical, process control and industrial applications. Since plastic fan blades can be susceptible to severe conditions such as high temperatures or chemical gases, metal fan blades are preferred in harsh environment applications for their durability. For harsh environment involving dust, moisture and other contaminants which may come in direct contact with fans, the IP55-rated sealing ensures safe, reliable operation and an extended operating life of the device.
品牌官網：
- 賣盤信息
- 常見問題
- 參數
-
平臺購物流程是怎樣的？
平臺商品來源有保障嗎？
平臺上展示的商品數量、價格及相關信息準確嗎？
平臺支持BOM詢價嗎?
平臺下單后什么時候能發貨？多久能到？
拍明芯城的訂單如何跟蹤?
拍明芯城的訂單可以提供合同嗎?
拍明芯城的發票如何開具?
| 參數 | 數值 |
|---|---|
|
Air Flow
|
840/1000CFM
|
|
Bearing Type
|
2 Ball
|
|
Brand/Series
|
OA2547AN Series
|
|
Configuration
|
Round
|
|
Dimensions
|
10 x 3.5 (254 x 89)In. (mm)
|
|
Direction
|
Exhaust over Struts
|
|
Fan Type
|
AC
|
|
Frequency
|
50/60 Hz
|
|
Material
|
Diecast Aluminum
|
|
Noise Level
|
70dBA
|
|
Power Rating
|
95/105W
|
|
Primary Type
|
Fans
|
|
Rotation
|
CCW
|
|
Size
|
10 x 3.5 (254 x 89) In. (mm)
|
|
Size
|
Fan,10 x 3.5 (254 x 89) In. (mm)
|
|
Speed
|
2800/3250RPM
|
|
Static Pressure
|
0.78/0.6In. (H2O)
|
|
Temperature Range
|
-30 to 80 °C
|
|
Temperature
|
Operating, Maximum,80 °C
|
|
Temperature
|
Operating, Minimum,-30 °C
|
|
Termination
|
Leadwires
|
|
Type
|
Round
|
|
Voltage Rating
|
115VAC
|
|
Weight
|
2400 g
|
