UDT
型號: UDT
類別: 集成電路

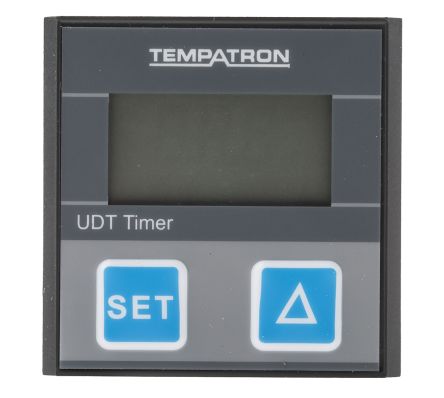

描述: The UDT is a 3-digit multi-function multi-time range Universal Digital Timer with plug-in termination. It is suitable for controlling operation of equipment, machinery, systems or processes in a wide range of industrial applications. Six timing functions can be selected together with time ranges from 0.1seconds to 99.9hours and the single pole changeover relay output contacts are isolated from the supply voltage. This timer is housed in a compact DIN48 square enclosure which can either panel mount or surface/DIN rail mount to a socket and can be powered from a wide range of 18 to 264VAC and 18 to 300VDC. The UDT timer has an internal lithium battery ensuring user settings are retained in the event of power failure and it can be programmed prior to installation and without a power supply. . 3-digit LCD display . 6 Programmable timing modes . 6 Time ranges from 0.1s to 99.9h . 18 to 264VAC and 18 to 300VDC . Changeover relay output . Standard DIN48 square size . Plug-in socket or panel mounting . Matching temperature controllers . Matching tachometer relays . Plug-in sockets also available
品牌官網: www.tempatron.co.uk
- 賣盤信息
- 常見問題
- 參數
-
平臺購物流程是怎樣的?
平臺商品來源有保障嗎?
平臺上展示的商品數量、價格及相關信息準確嗎?
平臺支持BOM詢價嗎?
平臺下單后什么時候能發貨?多久能到?
拍明芯城的訂單如何跟蹤?
拍明芯城的訂單可以提供合同嗎?
拍明芯城的發票如何開具?
參數 | 數值 |
---|---|
電壓電源
|
300 V (max)
|
引腳數
|
11
|
額定電壓(AC)
|
240 V
|
線圈電壓(AC)
|
264 V
|
觸點額定電流
|
7.00 A
|
安裝方式
|
Plug In, Panel
|
REACH SVHC標準
|
No SVHC
|
