UR3274U6
型號: UR3274U6
類別: 集成電路

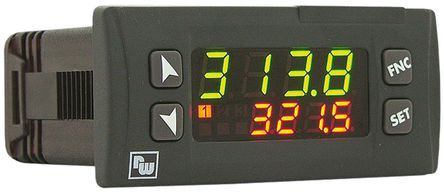

描述: The UR3274U6 is a PID Controller with the universal input for the most common temperature sensors and process signals combined with the universal power supply and the newest programming and control technologies, this small PID controller is the best solution for sophisticated applications. Beside the excellent price/performance-ratio, this controller convinces with his robust housing and brilliant display. The display features 2-line LED-display, process value 4-digit green with 10.2mm digits upper line and Setpoint 4-digit red with 7,6mm digits lower line. It features six red indicators for relays outputs, alarm status, serial communication and tuning. It also features 4 push buttons for programming and setting up the setpoints. The controller will be programmed via push buttons or Windows?-software. The memory card is battery powered. With this technology you can program the controller without powering it up (up to 1000 program cycles with one battery). . Universal power supply . Universal input for process signals, thermocouple and RTD . Easy programming via software or push buttons . 2 Setpoints as relay or relay/SSR . 2-line LED display
品牌官網: www.wachendorff-prozesstechnik.de
- 賣盤信息
- 常見問題
- 參數
-
平臺購物流程是怎樣的?
平臺商品來源有保障嗎?
平臺上展示的商品數量、價格及相關信息準確嗎?
平臺支持BOM詢價嗎?
平臺下單后什么時候能發貨?多久能到?
拍明芯城的訂單如何跟蹤?
拍明芯城的訂單可以提供合同嗎?
拍明芯城的發票如何開具?
參數 | 數值 |
---|---|
No. of Analogue Inputs
|
1
|
No. of Analogue Outputs
|
2
|
No. of Digital Inputs
|
\-
|
No. of Digital Outputs
|
\-
|
Product Range
|
\-
|
SVHC
|
No SVHC (17-Dec-2015)
|
