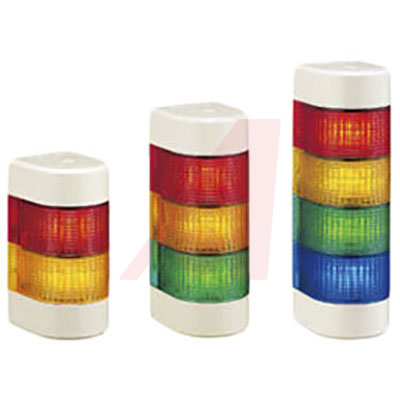

WME-202AFB-RG
加入對比型號： WME-202AFB-RG
品牌： 派特萊
類別： 集成電路
描述： * Meets IP-54 (WM-T/WME-A Continuous Light Only) * Can Be Readily Mounted Vertically or Horizontally to Either Front Panel or Ceilings * Integral Audible Alarm Versions Available (80 dB/m. +/-750-930 Hz) * WME-AFB Has 2 Selectable, Single-Tone Intermittent Alarms * WM-TFB Has 1 Alarm with an Alternating 2-Tone * Newly Developed Lens Offers the Brightest Light Available and Long Life Using a New Shock Resistant Bulb (DC Bayonet) * Lenses Are Made of Heat and Shock Resistant Polycarbonate Resin * FB Type Flashes 60 Times Per Minute * Available Colors Are: Red, Yellow, Green, Blue, and Clear * NPN or PNP Open Collector Transistor Compatible (24 V Only) * All Models Are Shipped Completely Pre-Assembled and Pre-Wired (Not Stackable After Purchase) * 24 V Model Is CE Compliant (EN60598-1)
品牌官網： www.patlite.cn
- 賣盤信息
- 參數
- 常見問題
| 參數 | 數值 |
|---|---|
|
Brand/Series
|
WME Series
|
|
Bulb Type
|
LED
|
|
Color
|
Green | Red
|
|
Color
|
Lens,Green | Red
|
|
Connection Type
|
Screw
|
|
Current
|
Consumption,24.6 (Green), 26.1 (Red) mA
|
|
Decibels at 1 Meter
|
90 dB
|
|
Diameter
|
Base,80 mm
|
|
Dimensions
|
80mm L x 70mm W x 146.9mm H
|
|
Enclosure Rating
|
IP54
|
|
Height
|
147 mm
|
|
IP Rating
|
IP54
|
|
Mounting Style
|
Wall Mount
|
|
Primary Type
|
Tower
|
|
Size
|
80 mm
|
|
Special Features
|
Superior Impact & Heat Resistant Lens
|
|
Supply Voltage
|
24 VAC/VDC
|
|
Temperature Range
|
-10 to 55°C
|
|
Temperature
|
Opening, Maximum,55 °C
|
|
Temperature
|
Operating, Minimum,-10 °C
|
|
Type
|
Continuous/Flashing
|
