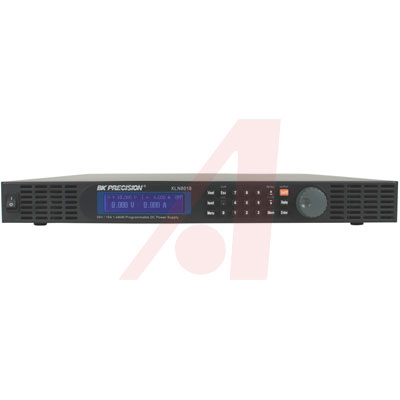

XLN-8018-GL
型號: XLN-8018-GL
品牌: B&K
類別: 集成電路
描述: The XLN series of programmable DC power supplies delivers up to 1440 watts of clean power on a single output. The compact 1U high 19 inch wide supplies were designed to meet the needs of both system integrators and bench top users. Fast average command processing times of less than 50 ms, combined with the flexibility of industry-standard GPIB, LAN, USB & RS485 interfaces make these supplies ideal for ATE applications. Bench top users will benefit from the built-in voltage and current meters displaying setting and output values concurrently, an intuitive user interface with full keypad and rotary knob as well as cost effective USB & RS485 interfaces that come standard with all models. The XLN series is perfectly suited for ATE systems integration, product design and development, product QC and burn-in testing, production, electro-plating and other applications requiring high, reliable power. **Features** * Compact, High Density, 1U Package * USB and RS485 Interface (Standard) * –GL Versions Include GPIB, LAN, USB and RS485 Interfaces * External Analog Programming Interface * Easy to Configure Master/Slave Mode for Series and Parallel Connection of Up to Four Units * Control Up to 31 Power Supplies from One PC Synchronized Via the RS485 Interface * Application Software Providing Remote Control Capabilities Included * Programmable Voltage and Current Slew Rate Allow for “Soft Starting” of Loads * LabVIEW? Drivers Available * 5 V/1 A Fixed Output for Auxiliary Output
品牌官網: www.bkprecision.com
- 賣盤信息
- 常見問題
- 參數
平臺購物流程是怎樣的?
平臺商品來源有保障嗎?
平臺上展示的商品數量、價格及相關信息準確嗎?
平臺支持BOM詢價嗎?
平臺下單后什么時候能發(fā)貨?多久能到?
拍明芯城的訂單如何跟蹤?
拍明芯城的訂單可以提供合同嗎?
拍明芯城的發(fā)票如何開具?
參數 | 數值 |
---|---|
Brand/Series
|
XLN Series
|
Current
|
Output,0-18 A
|
Dimensions
|
16.5" W x 1.7" H x 17.0" D
|
Efficiency
|
80% (Full Load)
|
Input Voltage
|
100-240 VAC
|
Interface
|
USB; Optional LAN and GPIB
|
Number of Outputs
|
1
|
Power
|
Output,1440 W
|
Temperature
|
Range, Operating Ambient,0 to 40°C
|
Time
|
Fall,≤ 25 ms/≤ 1000 ms
|
Time
|
Response,<50 ms
|
Time
|
Rise,≤ 25 ms
|
Type
|
Programmable
|
Voltage
|
Output,80 V
|
Weight
|
19.15 Lbs.
|
