ZMH1000B
型號: ZMH1000B
類別: 集成電路

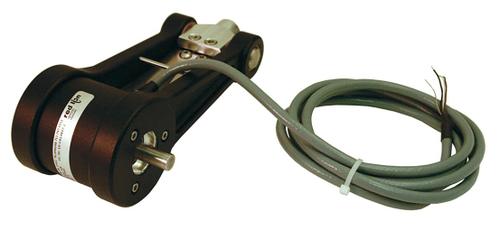

描述: Designed for light to medium duty sensing applications, the Miniature Length Sensor, Model ZMD, is compact in size and easy-to-use. It features a built-in spring-loaded torsion arm that provides a simple-toadjust torsion load, allowing the unit to be mounted in almost any orientation, including upside down. Using a 6" or 200 mm wheel, the ZMD can be used on almost any surface, while operating at speeds up to 3000 feet per minute. The housing is a durable, conductive composite material that will eliminate static build up. Whether you need to measure speed, position, or distances, the Model ZMD is the ideal solution. For other pulse rates and/or wiring configurations, contact the factory for further details.
品牌官網: www.redlion.net
- 賣盤信息
- 常見問題
- 參數
-
平臺購物流程是怎樣的?
平臺商品來源有保障嗎?
平臺上展示的商品數量、價格及相關信息準確嗎?
平臺支持BOM詢價嗎?
平臺下單后什么時候能發貨?多久能到?
拍明芯城的訂單如何跟蹤?
拍明芯城的訂單可以提供合同嗎?
拍明芯城的發票如何開具?
參數 | 數值 |
---|---|
Supply Voltage Min
|
4.75VDC
|
Supply Voltage Max
|
28VDC
|
Sensor Terminals
|
Wire Leads
|
Operating Temperature Min
|
-20°C
|
Operating Temperature Max
|
85°C
|
Speed Sensor Type
|
\-
|
Output Voltage (Peak to Peak)
|
\-
|
Inductance
|
\-
|
Gear Pitch Range
|
\-
|
Coil Resistance Min
|
\-
|
Coil Resistance Max
|
\-
|
Housing Diameter
|
\-
|
Surface Speed
|
\-
|
Product Range
|
ZMH Series
|
SVHC
|
No SVHC (17-Dec-2015)
|
