1SS
型號: 1SS
類別: 集成電路

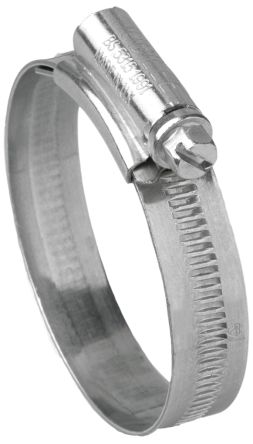

描述: The 1SS is a Hose Clip made of stainless steel. The performance of hose clips is determined by the hose type, spigot, tightening torque and hose working pressures. It is used in agricultural, hardware and industrial sectors, where higher corrosion resistance is required. It has specially designed 14 TPI screw form allows maximum working engagement with the band serrations which ensures smooth efficient transfer of torque to sealing ability. The 7mm hexagonal head screw has a screwdriver slot providing a variety of tightening methods. The housing ensures the correct shape throughout the range. The unique Jubilee crimp not only retains the screw but also provides the maximum thrust area for the screw collar. By pressing precisely formed serrations into the bands of strictly controlled 40 to 48 tons per square-inch tensile steel a constant thread form is achieved which is further strengthened by work hardening. . 13mm Band width . 0.914mm Band thickness . Corrosion resistance
品牌官網: www.jubileeclips.co.uk
- 賣盤信息
- 常見問題
- 參數
-
平臺購物流程是怎樣的?
平臺商品來源有保障嗎?
平臺上展示的商品數量、價格及相關信息準確嗎?
平臺支持BOM詢價嗎?
平臺下單后什么時候能發貨?多久能到?
拍明芯城的訂單如何跟蹤?
拍明芯城的訂單可以提供合同嗎?
拍明芯城的發票如何開具?
參數 | 數值 |
---|---|
夾子類型
|
軟管夾
|
裝配孔直徑
|
\-
|
產品范圍
|
\-
|
SVHC(高度關注物質)
|
No SVHC (17-Dec-2015)
|
