422969
型號: 422969
類別: 集成電路

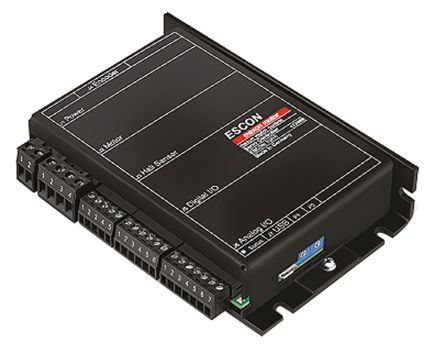

描述: The 422969 is a small-sized powerful 4-quadrant PWM Servo Controller for the highly efficient control of permanent magnet activated DC motors. The featured operating modes - speed control (closed loop), speed control (open loop) and current control - meet the highest requirements. The ESCON servo controller is designed being commanded by an analogue set value and features extensive analogue and digital I/O functionality and are being configured via USB interface using the graphical user interface ?ESCON Studio? for Windows PCs. The servo controller has protective circuits against overcurrent, excess temperature, under- and overvoltage, against voltage transients and against short-circuits in the motor cable. Furthermore it is equipped with protected digital inputs and outputs and an adjustable current limitation for protecting the motor and the load. The motor current and the actual speed of the motor shaft can be monitored by means of the analogue output voltage. . Digital incremental encoder . Digital hall sensors (EC motors) . 98% Maximum efficiency . 12-bit Resolution . Differential circuit
品牌官網: www.maxongroup.com.cn
- 賣盤信息
- 常見問題
- 參數
-
平臺購物流程是怎樣的?
平臺商品來源有保障嗎?
平臺上展示的商品數量、價格及相關信息準確嗎?
平臺支持BOM詢價嗎?
平臺下單后什么時候能發貨?多久能到?
拍明芯城的訂單如何跟蹤?
拍明芯城的訂單可以提供合同嗎?
拍明芯城的發票如何開具?
參數 | 數值 |
---|---|
電源電壓最小值
|
10VDC
|
電源電壓最大值
|
70VDC
|
電樞電流最大值
|
66.5V
|
產品范圍
|
\-
|
SVHC(高度關注物質)
|
To Be Advised
|
