440G-T27123
型號: 440G-T27123
類別: 集成電路

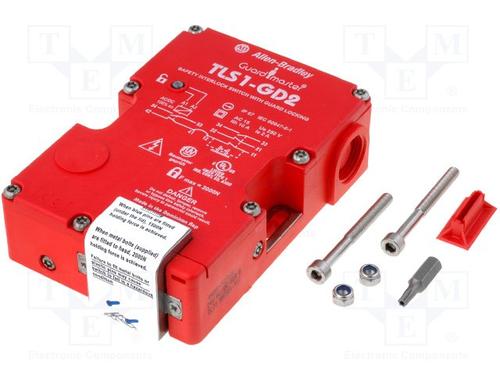

描述: The 440G-T27121 from Guardmaster is a guard locking switch. It is a positive mode, tongue operated guard locking Interlock switch that locks a machine guard closed until power is isolated and ensures that it remains isolated while the guard is open. The switch head has two entry slots and it can be rotated to provide four actuator entry points. A blanking plug is provided to seat the unused slot. The guard may only be opened when a signal is applied to the internal solenoid which releases the lock mechanism. This signal can be via CU1 electronic timer relays or CU2 stopped motion detectors. Therefore it is ideal for machines which do not stop immediately or where premature interruption of the machine could cause damage to tooling and components or cause an additional hazard. . Power to release . M20 conduit . Conforms to EN 1088 and EN 60947-5-1 standards . High locking force of 2000N . 1NC + 1NO contact configuration . Rotatable head with 4 possible key entry slots . Suitable for high pressure and high temperature washdown . IP69K protection rating . Operating temperature range from -20°C to 60°C
品牌官網:
- 賣盤信息
- 常見問題
- 參數
-
平臺購物流程是怎樣的?
平臺商品來源有保障嗎?
平臺上展示的商品數量、價格及相關信息準確嗎?
平臺支持BOM詢價嗎?
平臺下單后什么時候能發貨?多久能到?
拍明芯城的訂單如何跟蹤?
拍明芯城的訂單可以提供合同嗎?
拍明芯城的發票如何開具?
參數 | 數值 |
---|---|
電壓電源
|
230 V
|
觸點額定電流
|
5.00 A
|
安裝方式
|
Screw
|
REACH SVHC標準
|
No SVHC
|
