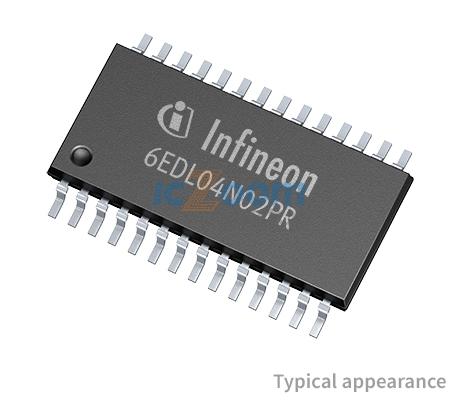

6EDL04N02PR
加入對比型號： 6EDL04N02PR
類別： 其他電源驅動
描述： Driver 200V 0.42A 6-OUT High and Low Side Full Brdg Non-Inv 28-Pin TSSOP T/R
品牌官網： www.infineon.com
- 賣盤信息
- 常見問題
- 參數
-
平臺購物流程是怎樣的？
平臺商品來源有保障嗎？
平臺上展示的商品數量、價格及相關信息準確嗎？
平臺支持BOM詢價嗎?
平臺下單后什么時候能發貨？多久能到？
拍明芯城的訂單如何跟蹤?
拍明芯城的訂單可以提供合同嗎?
拍明芯城的發票如何開具?
| 參數 | 數值 |
|---|---|
|
EU RoHS
|
Compliant
|
|
ECCN (US)
|
EAR99
|
|
Part Status
|
Active
|
|
Driver Type
|
High and Low Side
|
|
Driver Configuration
|
Non-Inverting
|
|
Bridge Type
|
Full Bridge
|
|
Number of Drivers
|
6
|
|
Number of Outputs
|
6
|
|
Maximum Rise Time (ns)
|
100
|
|
Maximum Fall Time (ns)
|
45
|
|
Maximum Propagation Delay Time...
|
800
|
|
Absolute Propagation Delay Tim...
|
800
|
|
Input Logic Compatibility
|
LSTTL|CMOS|3.3V(Min)
|
|
Minimum Operating Supply Volta...
|
10
|
|
Maximum Operating Supply Volta...
|
17.5
|
|
Typical Input Low Threshold Vo...
|
0.9
|
|
Typical Input High Threshold V...
|
2.1
|
|
High and Low Sides Dependency
|
Independent
|
|
Reference Voltage (V)
|
200(Max)
|
|
Peak Output Current (A)
|
0.42(Typ)
|
|
Maximum Power Dissipation (mW)
|
600
|
|
Minimum Operating Temperature ...
|
-40
|
|
Maximum Operating Temperature ...
|
95
|
|
Special Features
|
Current Limit|Undervoltage Lockout
|
|
Packaging
|
Tape and Reel
|
|
Latch-Up Proof
|
Yes
|
|
Pin Count
|
28
|
|
Supplier Package
|
TSSOP
|
|
Standard Package Name
|
SOP
|
|
Mounting
|
Surface Mount
|
|
Package Height
|
1
|
|
Package Length
|
9.7
|
|
Package Width
|
4.4
|
|
PCB changed
|
28
|
|
Lead Shape
|
Gull-wing
|
|
應用場景
|
通用款
|
|
功能
|
驅動功能
|
|
是否封裝
|
已封裝
|
|
是否切割
|
已切割
|
|
是否量產（量產或非量產）
|
量產
|
|
其他
|
非加密
|
