ZMD1000B
型號: ZMD1000B
品牌: 紅獅
類別: 編碼器

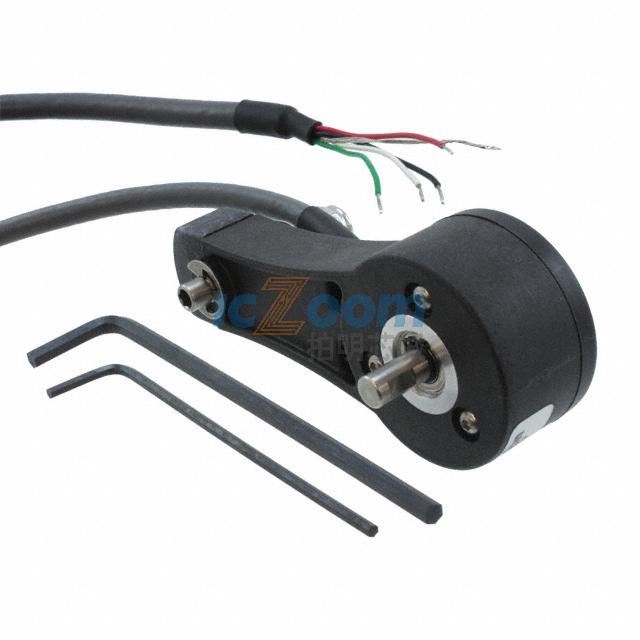

描述: Designed for light to medium duty sensing applications, the Miniature Length Sensor, Model ZMD, is compact in size and easy-to-use. It features a built-in spring-loaded torsion arm that provides a simple-toadjust torsion load, allowing the unit to be mounted in almost any orientation, including upside down. Using a 6" or 200 mm wheel, the ZMD can be used on almost any surface, while operating at speeds up to 3000 feet per minute. The housing is a durable, conductive composite material that will eliminate static build up. Whether you need to measure speed, position, or distances, the Model ZMD is the ideal solution. For other pulse rates and/or wiring configurations, contact the factory for further details.
品牌官網: www.redlion.net
- 賣盤信息
- 常見問題
- 參數
平臺購物流程是怎樣的?
平臺商品來源有保障嗎?
平臺上展示的商品數量、價格及相關信息準確嗎?
平臺支持BOM詢價嗎?
平臺下單后什么時候能發貨?多久能到?
拍明芯城的訂單如何跟蹤?
拍明芯城的訂單可以提供合同嗎?
拍明芯城的發票如何開具?
參數 | 數值 |
---|---|
電壓電源
|
4.75 V ~ 28 V
|
系列
|
ZMD
|
致動器類型
|
1/4u0026quot; Dia Flatted End
|
朝向
|
-
|
安裝類型
|
Chassis Mount
|
棘爪
|
No
|
每轉脈沖數
|
1000
|
安裝方式
|
Chassis
|
